SOILMAX

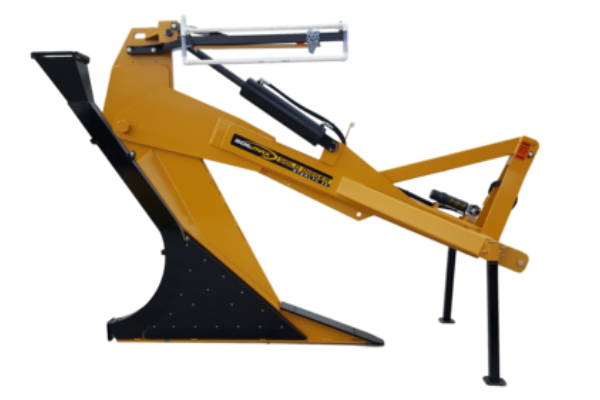

3-PT

SOILMAX

• Manufactured from T1 Steel, allowing twice the tensile strength with half the weight.
• 2 ¼” of t1 is = to 6” of mild steel in strength.
• Thinner profile shank = easier pulling through the soil.
• Lifting action lifting soil through the entire soil profile to make less drag on the plow.
• Installation of 3” to 10” tile by changing quick change poly sided boots and shear.
• Trapezoidal shaped shear and contoured boots to match tile size and maintain tile trench from beginning to end for accurate pipe placement.
• Zero deflection produces better grade control with the tile exit point directly below the hinge point of the pitch plow.
• Proprietary proportional valve to make crucial incremental adjustments to keep your plow on grade.
• 5.5’ working depth.
• Easy connecting 3pt in Cat III or Cat IV.
• Can be used on tractors as small as 20,000 lbs.

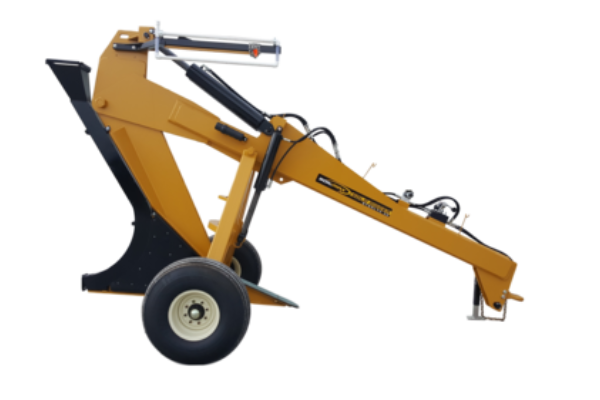

PULL TYPE

SOILMAX

• Manufactured from T1 Steel, allowing twice the tensile strength with half the weight.
• 2 ¼” of t1 is = to 6” of mild steel in strength.
• Thinner profile shank = easier pulling through the soil.
• Lifting action lifting soil through the entire soil profile to make less drag on the plow.
• Installation of 3” to 10” tile by changing quick change poly sided boots and shear.
• Trapezoidal shaped shear and contoured boots to match tile size and maintain tile trench from beginning to end for accurate pipe placement.
• Zero deflection produces better grade control with the tile exit point directly below the hinge point of the pitch plow.
• Proprietary proportional valve to make crucial incremental adjustments to keep your plow on grade.
• Available options: PWM controlled tile feeder, walking tandems.
• 6.5’ working depth.
• Easy single pin connection to hitch.
• Single point hydraulic hook-up to tractor.
• Proprietary down pressure manifold puts only necessary pressure on the wing wheels, ensuring that pipe being installed in the soil profile is being done correctly and is unaffected by surface conditions.

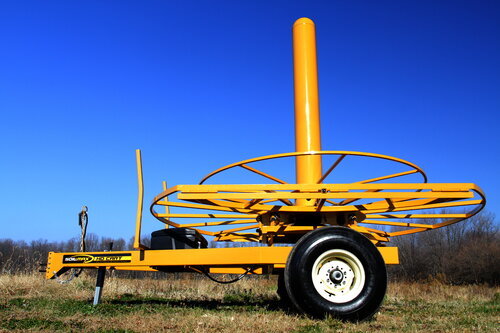

TILE CART

SOILMAX

The Soil-Max® HD Cart is built to handle the rigors of rugged terrain. It has a sturdy 5,200 lb. axle on 6-lug wheels with a steel tube construction frame. A 30-foot magnetic controller and 12V DC hydraulic unit makes operating the unit simple and straightforward. Standard onboard charging system.

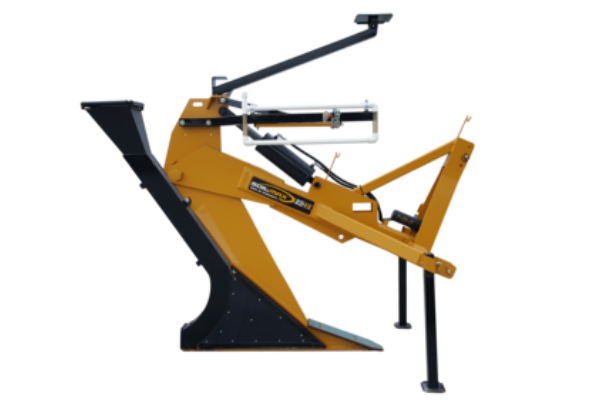

ZD-48

SOILMAX

• Manufactured from T1 Steel, allowing twice the tensile strength with half the weight.
• Needs a minimum of a 8,000 lb tractor
• Thinner profile shank = easier pulling through the soil.
• 4' maximum working depth
• Installation of 2” to 4” tile by changing quick change poly sided boots and shear.
• Zero deflection produces better grade control with the tile exit point directly below the hinge point of the pitch plow.
• Proprietary proportional valve to make crucial incremental adjustments to keep your plow on grade.
• Poly sides that shed dirt and makes for an easier pull
