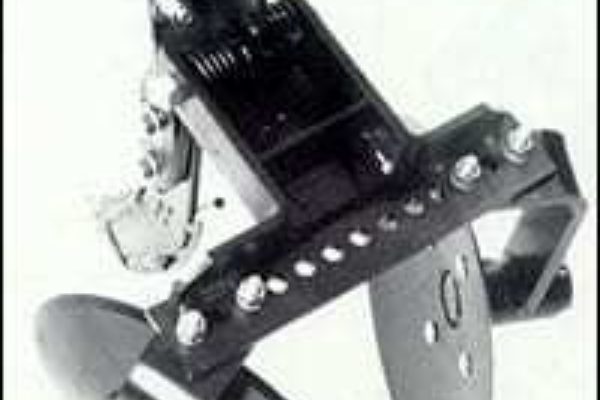

DISC SEALERS

HEARTLAND

The Most Versatile Ammonia Sealer in the World

Specifically designed for No-Till farming practices

• 1 Year Limited Warranty
• A Totally Greasless Hub Design
• Built Specifically for the Custom Applicator

A Hub Built for High Application Speeds

• 1-1/6″ Spindle welded to a 6″ heavy-duty plate
• 1″ Tapered roller bearings
• Slotted nut with cotter pin
• Counter-sunk dust cap keeps the dirt out
• No grease zerks
• Patented hub seal design really keeps the dirt out! Actually 7 seals in one all individually grease packed 10 times heavier then the conventional grease seal
• Press Fitted rubber design provides a better seat
• Seal is pressed onto the spindle and rotates with the hub

Blades Are Reversible

• 13″ Smooth edged blades
• 18″ Smooth or Notched edged blades
• Fits all standard NH3 shanks
• Blades are adjustable
• Blades are set forward to capture and replace soil
• Heavy-duty 2-1/2″ x 1/2″ arms
• Extra heavy-duty reinforced “A” frame with adjustable mounts

Unique Spring Design

• Relieves “A” frame stress
• Allows trash to flow through freely
• Spring is fully loaded in the rest position
• Won’t compromise the knife depth due to the Spring bottoming out
• No need to adjust the disc cover if running at different depths
• Features the most travel of any spring loaded disc cover13″ blade has 11″ of vertical travel
• 18″ blade has 14″ of vertical travel
