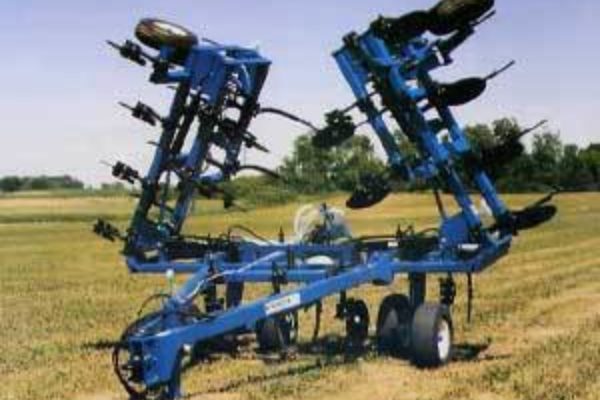

7200 SERIES

HEARTLAND

Designed and built for today’s modern farmer.

Pre-plant NH3 Application • Side-Dress NH3 Application • Strip-till or Zone Banding

Whatever your requirements the 7200 is flexible enough to fulfill your infield needs.

Features:
  • Heavy Duty 4″ x 6″ x 1/2 ” wall tubing will stand up where others have failed
  • Designed to carry the heavy loads of coulters, spring bundles & disc covers
  • Built to adapt to most all row spacing
  • Adjustable walking tandem axles
  • Master/Slave designed hydraulic lift system provides a uniform lift
Specifications
  • Available in sizes 21′, 27′, 32′ & 42′
  • Tubing size 4″ x 6″, 1/2 wall
  • Main frame width 13’9″
  • Transport height 12’2″
  • 10,000 pound capacity pole jack
  • Adjustable walking tandem hyd lift wheels
  • 11L x 15 Implement tires on 8″ rims
  • Hydraulic wing folds to 117 degrees
  • 38″ center to center between ranks
Options
  • Row markers for strip till applications
  • 7-pin flashing/warning light kit
  • Hydraulic selector valve
  • Rolling coulter assemblies
  • Single or double spring loaded disc covers
  • Meter/Controller assemblies
  • Dual manifolds
  • Spring bundled or coil shanks
