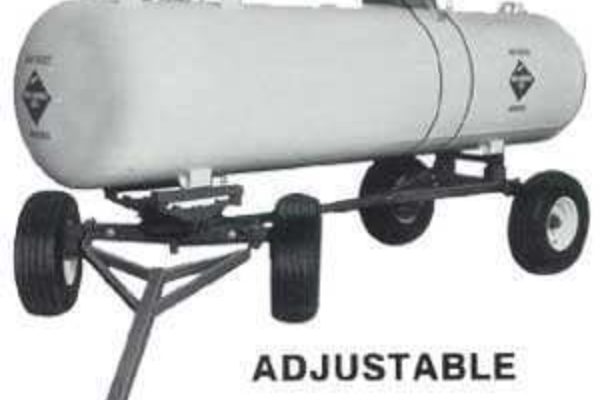

AG-86 High Clearance Ammonia Wagon

Accommodates tank size of 1415 and 1450 gallons

  • Wheel Track: 60″ to 80″
  • Wheel Base: 108″ to 120″
  • Front Axle Clearance: 19″
  • Weight (less rims and tires): 710 lbs.
  • Hubs: Heavy duty 6 on 6 hub group
  • Wheels: 15″ x 10″ or 16″ x 10″
  • Bolsters: Dual bolsters, each with 10 leaves and 1/4″ formed top
  • Axles: 4″ x 4″, 6-gauge outer tubing slides over 3 1/2″ x 3 1/2″, 1/4″ wall inner tubing
  • Reach Pole: Heavy duty 3″ tubing, 1/4″ wall
  • Hitch Pole: Extra length for tank clearance
  • Spindles: 2″
  • Brake Option: Two wheel surge
